材质:橡胶,硅胶,天然橡胶,氟胶,EPDM,CR等 |
||||
P2 | P3 | P4 | P5 | |

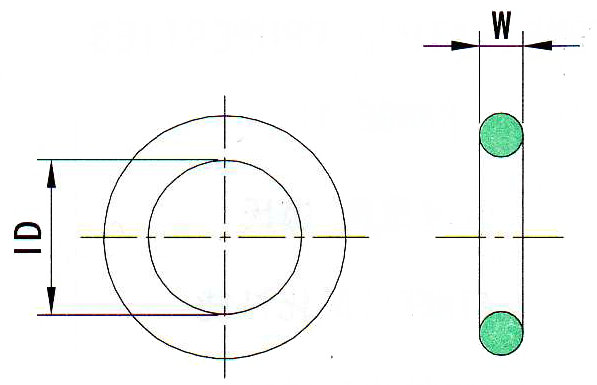

ID1.80*1.90 | ID2.80*1.90 | ID3.80*1.90 | ID4.80*1.90 | |
P6 | P7 | P8 | P9 | |
ID5.80*1.90 | ID6.80*1.90 | ID7.80*1.90 | ID8.80*1.90 | |
P10 | P10A | P11 | P11.2 | |
ID9.80*1.90 | ID9.80*2.40 | ID10.80*2.40 | ID11.00*2.40 | |
P12 | P12.5 | P14 | P15 | |
ID11.80*2.40 | ID12.30*2.40 | ID13.80*2.40 | ID14.80*2.40 | |
P16 | P18 | P20 | P21 | |
ID15.80*2.40 | ID17.80*2.40 | ID19.80*2.40 | ID20.80*2.40 | |
P22 | P22A | P22.4 | P24 | |
ID21.80*2.40 | ID21.70*3.50 | ID22.10*3.50 | ID23.70*3.50 | |
P25 | P25.5 | P26 | P28 | |
ID24.70*3.50 | ID25.20*3.50 | ID25.70*3.50 | ID27.70*3.50 | |
P29 | P29.5 | P30 | P31 | |
ID28.70*3.50 | ID29.20*3.50 | ID29.70*3.50 | ID30.70*3.50 | |
P31.5 | P32 | P34 | P35 | |
ID31.20*3.50 | ID31.70*3.50 | ID33.70*3.50 | ID34.70*3.50 | |
P35.5 | P36 | P38 | P39 | |
ID35.20*3.50 | ID35.70*3.50 | ID37.70*3.50 | ID38.70*3.50 | |
P40 | P41 | P42 | P44 | |
ID39.70*3.50 | ID40.70*3.50 | ID41.70*3.50 | ID43.70*3.50 | |
P45 | P46 | P48 | P49 | |
ID44.70*3.50 | ID45.70*3.50 | ID47.70*3.50 | ID48.70*3.50 | |
P50 | P48A | P50A | P52 | |
ID49.70*3.50 | ID47.60*3.50 | ID49.60*5.70 | ID51.60*5.70 | |
P53 | P55 | P56 | P58 | |
ID52.60*5.70 | ID54.60*5.70 | ID55.60*5.70 | ID57.60*5.70 | |
P60 | P62 | P63 | P65 | |
ID59.60*5.70 | ID61.60*5.70 | ID62.60*5.70 | ID64.60*5.70 | |
P63 | P65 | P67 | P70 | |
ID62.60*5.70 | ID64.60*5.70 | ID66.60*5.70 | ID69.60*5.70 | |
P71 | P75 | P80 | P85 | |
ID70.60*5.70 | ID74.60*5.70 | ID79.60*5.70 | ID84.60*5.70 | |
P90 | P95 | P100 | P102 | |
ID89.60*5.70 | ID94.60*5.70 | ID99.60*5.70 | ID101.60*5.70 | |
P105 | P110 | P112 | P115 | |
ID104.60*5.70 | ID109.60*5.70 | ID111.60*5.70 | ID114.60*5.70 | |
P120 | P125 | P130 | P132 | |
ID119.60*5.70 | ID124.60*5.70 | ID129.60*5.70 | ID131.60*5.70 | |
P135 | P140 | P145 | P150 | |
ID134.60*5.70 | ID139.60*5.70 | ID144.60*5.70 | ID149.60*5.70 | |
P150A | P155 | P160 | P165 | |
ID149.50*8.40 | ID154.50*8.40 | ID159.50*8.40 | ID164.50*8.40 | |
P170 | P175 | P180 | P185 | |
ID169.50*8.40 | ID174.50*8.40 | ID179.50*8.40 | ID184.50*8.40 | |
P190 | P195 | P200 | P205 | |
ID189.50*8.40 | ID194.50*8.40 | ID199.50*8.40 | ID204.50*8.40 | |
P209 | P210 | P215 | P220 | |
ID208.50*8.40 | ID209.50*8.40 | ID214.50*8.40 | ID219.50*8.40 | |
P225 | P230 | P235 | P240 | |
ID224.50*8.40 | ID229.50*8.40 | ID234.50*8.40 | ID239.50*8.40 | |
P245 | P250 | P255 | P260 | |
ID244.50*8.40 | ID249.50*8.40 | ID254.50*8.40 | ID259.50*8.40 | |
P265 | P270 | P275 | P280 | |
ID264.50*8.40 | ID269.50*8.40 | ID274.50*8.40 | ID279.50*8.40 | |
P285 | P290 | P295 | P300 | |
ID284.50*8.40 | ID289.50*8.40 | ID294.50*8.40 | ID299.50*8.40 | |
P305 | P310 | P315 | P320 | |
ID304.50*8.40 | ID309.50*8.40 | ID314.50*8.40 | ID319.50*8.40 | |
P315 | P320 | P325 | P330 | |
ID314.50*8.40 | ID319.50*8.40 | ID324.50*8.40 | ID329.50*8.40 | |
P335 | P340 | P345 | P350 | |
ID334.50*8.40 | ID339.50*8.40 | ID344.50*8.40 | ID349.50*8.40 | |
P355 | P360 | P365 | P370 | |
ID354.50*8.40 | ID359.50*8.40 | ID364.50*8.40 | ID369.50*8.40 | |
P375 | P380 | P385 | P390 | |
ID374.50*8.40 | ID379.50*8.40 | ID384.50*8.40 | ID389.50*8.40 | |
P395 | P400 | P405 | P410 | |
ID394.50*8.40 | ID399.50*8.40 | ID404.50*8.40 | ID409.50*8.40 | |
P415 | P420 | P425 | P430 | |
ID414.50*8.40 | ID419.50*8.40 | ID424.50*8.40 | ID429.50*8.40 | |
P435 | P440 | P445 | P450 | |
ID434.50*8.40 | ID439.50*8.40 | ID444.50*8.40 | ID449.50*8.40 | |
P455 | P460 | P465 | P470 | |
ID454.50*8.40 | ID459.50*8.40 | ID464.50*8.40 | ID469.50*8.40 | |
P475 | P480 | P485 | P490 | |
ID474.50*8.40 | ID479.50*8.40 | ID484.50*8.40 | ID489.50*8.40 | |
P495 | P500 | P505 | P510 | |
ID494.50*8.40 | ID499.50*8.40 | ID504.50*8.40 | ID509.50*8.40 | |
P515 | P520 | P525 | P530 | |
ID514.50*8.40 | ID519.50*8.40 | ID524.50*8.40 | ID529.50*8.40 | |
P535 | P540 | P545 | P550 | |
ID534.50*8.40 | ID539.50*8.40 | ID544.50*8.40 | ID549.50*8.40 | |
P555 | P560 | P565 | P570 | |
ID554.50*8.40 | ID559.50*8.40 | ID564.50*8.40 | ID569.50*8.40 | |
P575 | P580 | P585 | P590 | |
ID574.50*8.40 | ID579.50*8.40 | ID584.50*8.40 | ID589.50*8.40 | |
P595 | P600 | P610 | P620 | |
ID594.50*8.40 | ID599.50*8.40 | ID609.50*8.40 | ID619.50*8.40 | |
P610 | P620 | P630 | P640 | |
ID609.50*8.40 | ID619.50*8.40 | ID629.50*8.40 | ID639.50*8.40 | |
P650 | P660 | P670 | P680 | |
ID649.50*8.40 | ID659.50*8.40 | ID669.50*8.40 | ID679.50*8.40 | |
P690 | P700 | P710 | P720 | |
ID689.50*8.40 | ID699.50*8.40 | ID709.50*8.40 | ID719.50*8.40 | |
P730 | P740 | P750 | P760 | |
ID729.50*8.40 | ID739.50*8.40 | ID749.50*8.40 | ID759.50*8.40 | |
P770 | P780 | P790 | P800 | |
ID769.50*8.40 | ID779.50*8.40 | ID789.50*8.40 | ID799.50*8.40 | |
JIS-P810 | P820 | P830 | P840 | |
ID809.50*8.40 | ID819.50*8.40 | ID829.50*8.40 | ID839.50*8.40 | |
P850 | P860 | P870 | P880 | |
ID849.50*8.40 | ID859.50*8.40 | ID869.50*8.40 | ID879.50*8.40 | |
JIS-P890 | P900 | P910 | P920 | |
ID889.50*8.40 | ID899.50*8.40 | ID909.50*8.40 | ID919.50*8.40 | |
P930 | P940 | P950 | P960 | |
ID929.50*8.40 | ID939.50*8.40 | ID949.50*8.40 | ID959.50*8.40 | |
P970 | P980 | P990 | JIS-P1000 | |
ID969.50*8.40 | ID979.50*8.40 | ID989.50*8.40 | ID999.50*8.40 | |
P1020 | P1040 | P1060 | P1080 | |
ID1019.50*8.40 | ID1038.50*8.40 | ID1059.50*8.40 | ID1079.50*8.40 | |
P1100 | P1120 | P1140 | P1160 | |
ID1099.50*8.40 | ID1119.50*8.40 | ID1139.50*8.40 | ID1159.50*8.40 | |
P1180 | P1200 | P1220 | P1240 | |
ID1179.50*8.40 | ID1199.50*8.40 | ID1219.50*8.40 | ID1239.50*8.40 | |
P1260 | P1280 | P1300 | P1320 | |
ID1259.50*8.40 | ID1279.50*8.40 | ID1299.50*8.40 | ID1319.50*8.40 | |
P1340 | P1360 | P1380 | P1400 | |
ID1339.50*8.40 | ID1359.50*8.40 | ID1379.50*8.40 | ID1399.50*8.40 | |
P1380 | P1400 | P1420 | P1440 | |
ID1379.50*8.40 | ID1399.50*8.40 | ID1419.50*8.40 | ID1439.50*8.40 | |
P1460 | P1480 | P1500 | ||
ID1459.50*8.40 | ID1479.50*8.40 | ID1499.50*8.40 | ||
G3 | ||||
ID2.40*3.10 | ||||
G4 | G5 | G6 | G6 | |
ID3.40*3.10 | ID4.40*3.10 | ID5.40*3.10 | ID5.40*3.10 | |
G7 | G8 | G9 | G10 | |
ID6.40*3.10 | ID7.40*3.10 | ID8.40*3.10 | ID9.40*3.10 | |
G11 | G12 | G13 | G14 | |
ID10.40*3.10 | ID11.40*3.10 | ID12.40*3.10 | ID13.40*3.10 | |
G15 | G16 | G17 | G18 | |
ID14.40*3.10 | ID15.40*3.10 | ID16.40*3.10 | ID17.40*3.10 | |
G19 | G20 | G21 | G22 | |
ID18.40*3.10 | ID19.40*3.10 | ID20.40*3.10 | ID21.80*3.10 | |
G23 | G24 | G25 | G30 | |
ID22.40*3.10 | ID23.40*3.10 | ID24.40*3.10 | ID29.40*3.10 | |
G35 | G40 | G45 | G50 | |
ID34.40*3.10 | ID39.40*3.10 | ID44.40*3.10 | ID49.40*3.10 | |
G52 | G55 | G58 | G60 | |
ID51.40*3.10 | ID54.40*3.10 | ID57.40*3.10 | ID59.40*3.10 | |
G62 | G63 | G64 | G65 | |
ID61.40*3.10 | ID62.40*3.10 | ID63.40*3.10 | ID64.40*3.10 | |
G67 | G70 | G72 | G75 | |
ID66.40*3.10 | ID69.40*3.10 | ID71.40*3.10 | ID74.40*3.10 | |
G80 | G85 | G90 | G95 | |
ID79.40*3.10 | ID84.40*3.10 | ID89.40*3.10 | ID94.40*3.10 | |
G100 | G105 | G110 | G115 | |
ID99.40*3.10 | ID104.40*3.10 | ID109.40*3.10 | ID114.40*3.10 | |
G120 | G125 | G130 | G135 | |
ID119.40*3.10 | ID124.40*3.10 | ID129.40*3.10 | ID134.40*3.10 | |
G130 | G135 | G140 | G145 | |
ID129.40*3.10 | ID134.40*3.10 | ID139.40*3.10 | ID144.40*3.10 | |
GS150 | GS155 | GS160 | GS165 | |
ID149.30*3.10 | ID154.30*3.10 | ID159.30*3.10 | ID164.30*3.10 | |
GS170 | GS175 | GS180 | GS185 | |
ID169.30*3.10 | ID174.30*3.10 | ID179.30*3.10 | ID184.30*3.10 | |
GS190 | GS195 | GS200 | GS205 | |
ID189.30*3.10 | ID194.30*3.10 | ID199.30*3.10 | ID204.30*3.10 | |
GS210 | GS215 | GS220 | GS225 | |
ID209.30*3.10 | ID214.30*2.10 | ID219.30*3.10 | ID224.30*3.10 | |
GS230 | GS235 | GS240 | GS245 | |
ID229.30*3.10 | ID234.30*3.10 | ID239.30*3.10 | ID244.30*3.10 | |
GS250 | GS255 | GS260 | GS265 | |
ID249.30*3.10 | ID254.30*3.10 | ID259.30*3.10 | ID264.30*3.10 | |
GS270 | GS275 | GS280 | GS285 | |
ID269.30*3.10 | ID274.30*3.10 | ID279.30*3.10 | ID284.30*3.10 | |
GS290 | GS295 | GS300 | GS305 | |
ID289.30*3.10 | ID294.30*3.10 | ID299.30*3.10 | ID304.30*3.10 | |
GS310 | GS315 | GS320 | GS325 | |
ID309.30*3.10 | ID314.30*3.10 | ID319.30*3.10 | ID324.30*3.10 | |
GS330 | GS335 | GS340 | GS345 | |
ID329.30*3.10 | ID334.30*3.10 | ID339.30*3.10 | ID344.30*3.10 | |
GS350 | GS355 | GS360 | GS365 | |
ID349.30*3.10 | ID354.30*3.10 | ID359.30*3.10 | ID364.30*3.10 | |
GS370 | GS375 | GS380 | GS385 | |
ID369.30*3.10 | ID374.30*3.10 | ID379.30*3.10 | ID384.30*3.10 | |
GS390 | GS395 | GS400 | GS405 | |
ID389.30*3.10 | ID394.30*3.10 | ID399.30*3.10 | ID404.30*3.10 | |
GS410 | GS415 | GS420 | GS425 | |
ID409.30*3.10 | ID414.30*3.10 | ID419.30*3.10 | ID424.30*3.10 | |
GS420 | GS425 | GS430 | GS435 | |
ID419.30*3.10 | ID424.30*3.10 | ID429.30*3.10 | ID434.30*3.10 | |
GS440 | GS445 | GS450 | GS455 | |
ID439.30*3.10 | ID444.30*3.10 | ID449.30*3.10 | ID454.30*3.10 | |
GS460 | GS465 | GS470 | GS475 | |
ID459.30*3.10 | ID464.30*3.10 | ID469.30*3.10 | ID474.30*3.10 | |
GS480 | GS485 | GS490 | GS495 | |
ID479.30*3.10 | ID484.30*3.10 | ID489.30*3.10 | ID494.30*3.10 | |
GS500 | G150 | G155 | G160 | |
ID499.30*3.10 | ID149.30*5.70 | ID154.30*5.70 | ID159.30*5.70 | |
G165 | G170 | G175 | G180 | |
ID164.30*5.70 | ID169.30*5.70 | ID174.30*3.10 | ID179.30*3.10 | |
G185 | G190 | G195 | G200 | |
ID184.30*5.70 | ID189.30*5.70 | ID194.30*5.70 | ID199.30*5.70 | |
G205 | G210 | G215 | G220 | |
ID204.30*5.70 | ID209.30*5.70 | ID214.30*5.70 | ID219.30*5.70 | |
G225 | G230 | G235 | G235 | |
ID224.30*5.70 | ID229.30*5.70 | ID234.30*5.70 | ID234.30*5.70 | |
G240 | G245 | G250 | G255 | |
ID239.30*5.70 | ID244.30*5.70 | ID249.30*5.70 | ID254.30*5.70 | |
G260 | G265 | G270 | G275 | |
ID259.30*5.70 | ID264.30*5.70 | ID269.30*5.70 | ID274.30*5.70 | |
G280 | G285 | G290 | G295 | |
ID279.30*5.70 | ID284.30*5.70 | ID289.30*5.70 | ID294.30*5.70 | |
G300 | G305 | G310 | G315 | |
ID299.30*5.70 | ID304.30*5.70 | ID309.30*5.70 | ID314.30*5.70 | |
G320 | G325 | G330 | G335 | |
ID319.30*5.70 | ID324.30*5.70 | ID329.30*5.70 | ID334.30*5.70 | |
G340 | G345 | G350 | G355 | |
ID339.30*5.70 | ID344.30*5.70 | ID349.30*5.70 | ID354.30*5.70 | |
G350 | G355 | G360 | G365 | |
ID349.30*5.70 | ID354.30*5.70 | ID359.30*5.70 | ID364.30*5.70 | |
G370 | G375 | G380 | G385 | |
ID369.30*5.70 | ID374.30*5.70 | ID379.30*5.70 | ID384.30*5.70 | |
G390 | G395 | G400 | G405 | |
ID389.30*5.70 | ID394.30*5.70 | ID399.30*5.70 | ID404.30*5.70 | |
G410 | G415 | G420 | G425 | |
ID409.30*5.70 | ID414.30*5.70 | ID419.30*5.70 | ID424.30*5.70 | |
G430 | G435 | G440 | G445 | |
ID429.30*5.70 | ID434.30*5.70 | ID439.30*5.70 | ID444.30*5.70 | |
G450 | G455 | G460 | G465 | |
ID449.30*5.70 | ID454.30*5.70 | ID459.30*5.70 | ID464.30*5.70 | |
G470 | G475 | G480 | G485 | |
ID469.30*5.70 | ID474.30*5.70 | ID479.30*5.70 | ID484.30*5.70 | |
G490 | G495 | G500 | G505 | |
ID489.30*5.70 | ID494.30*5.70 | ID499.30*5.70 | ID504.30*5.70 | |
G510 | G515 | G520 | G525 | |
ID509.30*5.70 | ID514.30*5.70 | ID519.30*5.70 | ID524.30*5.70 | |
G530 | G535 | G540 | G545 | |
ID529.30*5.70 | ID534.30*5.70 | ID539.30*5.70 | ID544.30*5.70 | |
G550 | G555 | G560 | G565 | |
ID549.30*5.70 | ID554.30*5.70 | ID559.30*5.70 | ID564.30*5.70 | |
G570 | G575 | G580 | G585 | |
ID569.30*5.70 | ID574.30*5.70 | ID579.30*5.70 | ID584.30*5.70 | |
G590 | G595 | G600 | G610 | |
ID589.30*5.70 | ID594.30*5.70 | ID599.30*5.70 | ID609.30*5.70 | |
G620 | G630 | G640 | G650 | |
ID619.30*5.70 | ID629.30*5.70 | ID639.30*5.70 | ID649.30*5.70 | |
G660 | G670 | G680 | G690 | |
ID659.30*5.70 | ID669.30*5.70 | ID679.30*5.70 | ID689.30*5.70 | |
G680 | G690 | G700 | G710 | |
ID679.30*5.70 | ID689.30*5.70 | ID699.30*5.70 | ID709.30*5.70 | |
G720 | G730 | G740 | G750 | |
ID719.30*5.70 | ID729.30*5.70 | ID739.30*5.70 | ID749.30*5.70 | |
G760 | G770 | G780 | G790 | |
ID759.30*5.70 | ID769.30*5.70 | ID779.30*5.70 | ID789.30*5.70 | |
G800 | G810 | G820 | G830 | |
ID799.30*5.70 | ID809.30*5.70 | ID819.30*5.70 | ID829.30*5.70 | |
G840 | G850 | G860 | G870 | |
ID839.30*5.70 | ID849.30*5.70 | ID859.30*5.70 | ID869.30*5.70 | |
G880 | G890 | G900 | G910 | |
ID879.30*5.70 | ID889.30*5.70 | ID899.30*5.70 | ID909.30*5.70 | |
G920 | G930 | G940 | G950 | |
ID919.30*5.70 | ID929.30*5.70 | ID939.30*5.70 | ID949.30*5.70 | |
G960 | G970 | G980 | G990 | |
ID959.30*5.70 | ID969.30*5.70 | ID979.30*5.70 | ID989.30*5.70 | |
G1000 | G1020 | G1040 | G1060 | |
ID999.30*5.70 | ID1019.30*5.70 | ID1039.30*5.70 | ID1059.30*5.70 | |
G1080 | G1100 | G1120 | G1140 | |
ID1079.30*5.70 | ID1099.30*5.70 | ID1119.30*5.70 | ID1139.30*5.70 | |
G1160 | G1180 | G1200 | G1220 | |
ID1159.30*5.70 | ID1179.30*5.70 | ID1199.30*5.70 | ID1219.30*5.70 | |
G1240 | G1260 | G1280 | G1300 | |
ID1239.30*5.70 | ID1259.30*5.70 | ID1279.30*5.70 | ID1299.30*5.70 | |
G1320 | G1340 | G1360 | G1380 | |
ID1319.30*5.70 | ID1339.30*5.70 | ID1359.30*5.70 | ID1379.30*5.70 | |
G1400 | G1420 | G1440 | G1460 | |
ID1399.30*5.70 | ID1419.30*5.70 | ID1439.30*5.70 | ID1459.30*5.70 | |
G1480 | G1500 | |||
ID1479.30*5.70 | ID1499.30*5.70 | |||
S2 | S3 | |||
ID1.50*1.50 | ID2.50*1.50 | |||
S2 | S3 | S4 | S5 | |
ID1.50*1.50 | ID2.50*1.50 | ID3.50*1.50 | ID4.50*1.50 | |
S6 | S7 | S8 | S9 | |
ID5.50*1.50 | ID6.50*1.50 | ID7.50*1.50 | ID8.50*1.50 | |
S10 | S11.2 | S12.5 | S13 | |
ID9.50*1.50 | ID10.70*1.50 | ID11.50*1.50 | ID12.00*1.50 | |
S14 | S15 | S16 | S18 | |
ID13.50*1.50 | ID14.50*1.50 | ID15.50*1.50 | ID17.50*1.50 | |
S20 | S22 | S22.4 | S24 | |
ID19.50*1.50 | ID21.50*1.50 | ID21.90*2.00 | ID23.50*1.50 | |
S25 | S26 | S28 | S29 | |
ID24.50*2.00 | ID25.50*2.00 | ID27.50*2.00 | ID28.50*2.00 | |
S30 | S31.5 | S32 | S34 | |
ID29.50 | ID31.00*2.00 | ID31.50*2.00 | ID33.50*2.00 | |
S35 | S35.5 | S36 | S38 | |
ID34.50*2.00 | ID35.00*2.00 | ID35.50*2.00 | ID37.50*2.00 | |
S39 | S40 | S42 | S44 | |
ID38.50*2.00 | ID39.50*2.00 | ID41.50*2.00 | ID43.50*2.00 | |
S45 | S46 | S48 | S50 | |
ID44.50*2.00 | ID45.50*2.00 | ID47.50*2.00 | ID49.50*2.00 | |
S53 | S55 | S56 | S60 | |
ID52.50*2.00 | ID54.50*2.00 | ID55.50*2.00 | ID59.50*2.00 | |
S63 | S65 | S67 | S70 | |
ID62.50*2.00 | ID64.50*2.00 | ID66.50*2.00 | ID69.50*2.00 | |
S71 | S75 | S80 | S85 | |
ID70.50*2.00 | ID74.50*2.00 | ID79.50*2.00 | ID84.50*2.00 | |
S90 | S95 | S100 | S105 | |
ID89.50*2.00 | ID94.50*2.00 | ID99.50*2.00 | ID104.50*2.00 | |
S110 | S112 | S115 | S120 | |
ID109.50*2.00 | ID111.50*2.00 | ID114.50*2.00 | ID119.50*2.00 | |
S115 | S120 | S125 | S130 | |
ID114.50*2.00 | ID119.50*2.00 | ID124.50*2.00 | ID129.50*2.00 | |
S132 | S135 | S140 | S145 | |
ID131.50*2.00 | ID134.50*2.00 | ID139.50*2.00 | ID144.50*2.00 | |
S150 | S155 | S160 | S165 | |
ID149.50*2.00 | ID154.50*2.00 | ID159.50*2.00 | ID164.50*2.00 | |
S170 | S175 | S180 | S185 | |
ID169.50*2.00 | ID174.50*2.00 | ID179.50*2.00 | ID184.50*2.00 | |
S190 | S195 | S200 | S205 | |
ID189.50*2.00 | ID194.50*2.00 | ID199.50*2.00 | ID204.50*2.00 | |
S210 | S215 | S220 | S225 | |
ID209.50*2.00 | ID214.50*2.00 | ID219.50*2.00 | ID224.50*2.00 | |
S230 | S235 | S240 | S245 | |
ID299.50*2.00 | ID234.50*2.00 | ID239.50*2.00 | ID244.50*2.00 | |
S250 | S255 | S260 | S265 | |
ID249.50*2.00 | ID254.50*2.00 | ID259.50*2.00 | ID264.50*2.00 | |
S270 | S275 | S280 | S285 | |
ID269.50*2.00 | ID274.50*2.00 | ID279.50*2.00 | ID284.50*2.00 | |
S290 | S295 | S300 | ||
ID289.50*2.00 | ID294.50*2.00 | ID299.50*2.00 | ||
V10 | ||||
ID9.50*4.00 | ||||
V11 | V12 | V14 | V15 | |
ID10.50*4.00 | ID11.50*4.00 | ID13.50*4.00 | ID14.50*4.00 | |
V16 | V18 | V20 | V21 | |
ID15.50*4.00 | ID17.50*4.00 | ID19.50*4.00 | ID20.50*4.00 | |
V22 | V24 | V25 | V26 | |
ID21.50*4.00 | ID23.50*4.00 | ID24.50*4.00 | ID25.50*4.00 | |
V28 | V30 | V32 | V34 | |
ID27.50*4.00 | ID29.50*4.00 | ID31.50*4.00 | ID33.50*4.00 | |
V35 | V36 | V38 | V40 | |
ID34.50*4.00 | ID34.50*4.00 | ID37.50*4.00 | ID39.50*4.00 | |
V38 | V40 | V42 | V44 | |
ID37.50*4.00 | ID39.50*4.00 | ID41.50*4.00 | ID43.50*4.00 | |
V45 | V46 | V48 | V50 | |
ID44.50*4.00 | ID45.50*4.00 | ID47.50*4.00 | ID49.50*4.00 | |
V53 | V55 | V56 | V58 | |
ID52.50*4.00 | ID54.50*4.00 | ID55.50*4.00 | ID57.50*4.00 | |
V60 | V63 | V65 | V67 | |
ID59.50*4.00 | ID62.50*4.00 | ID64.50*4.00 | ID66.50*4.00 | |
V70 | V75 | V80 | V85 | |
ID69.00*4.00 | ID74.00*4.00 | ID79.00*4.00 | ID84.00*4.00 | |
V90 | V95 | V100 | V105 | |
ID89.00*4.00 | ID94.00*4.00 | ID99.00*4.00 | ID104.00*4.00 | |
V110 | V115 | V120 | V125 | |
ID109.00*4.00 | ID114.00*4.00 | ID119.00*4.00 | ID124.00*4.00 | |
V130 | V135 | V140 | V145 | |
ID129.00*4.00 | ID134.00*4.00 | ID138.50*4.00 | ID143.50*4.00 | |
V150 | V155 | V160 | V165 | |
ID148.50*4.00 | ID153.00*4.00 | ID158.00*4.00 | ID163.00*4.00 | |
V170 | V175 | V180 | V185 | |
ID168.00*4.00 | ID173.00*4.00 | ID178.00*4.00 | ID183.00*4.00 | |
V190 | V195 | V200 | V205 | |
ID188.00*4.00 | ID193.00*4.00 | ID198.00*4.00 | ID203.00*4.00 | |
V210 | V215 | V220 | V225 | |
ID208.00*4.00 | ID213.00*4.00 | ID218.00*4.00 | ID222.50*6.00 | |
V230 | V235 | V240 | V245 | |
ID227.50*6.00 | ID232.50*6.00 | ID237.50*6.00 | ID242.50*6.00 | |
V250 | V255 | V260 | V265 | |
ID247.50*6.00 | ID252.50*6.00 | ID257.50*6.00 | ID262.50*6.00 | |
V270 | V275 | V280 | V285 | |
ID267.50*6.00 | ID272.00*6.00 | ID277.00*6.00 | ID282.00*6.00 | |
V280 | V285 | V290 | V295 | |
ID277.00*6.00 | ID282.00*6.00 | ID287.00*6.00 | ID292.00*6.00 | |
V300 | V305 | V310 | V315 | |
ID297.00*6.00 | ID302.00*6.00 | ID307.00*6.00 | ID312.00*6.00 | |
V320 | V325 | V330 | V335 | |
ID317.00*6.00 | ID321.50*6.00 | ID326.50*6.00 | ID331.50*6.00 | |
V340 | V345 | V350 | V355 | |
ID336.50*6.00 | ID341.50*6.00 | ID346.50*6.00 | ID351.50*6.00 | |
V360 | V365 | V370 | V375 | |
ID356.50*6.00 | ID361.50*6.00 | ID366.50*6.00 | ID371.50*6.00 | |
V380 | V385 | V390 | V395 | |
ID376.00*6.00 | ID381.00*6.00 | ID386.00*6.00 | ID391.00*6.00 | |
V400 | V405 | V410 | V415 | |
ID396.00*6.00 | ID401.00*6.00 | ID406.00*6.00 | ID411.00*6.00 | |
V420 | V425 | V430 | V435 | |
ID416.00*6.00 | ID421.00*6.00 | ID425.50*6.00 | ID430.50*6.00 | |
V440 | V445 | V450 | V455 | |
ID435.50*6.00 | ID440.50*6.00 | ID445.50*6.00 | ID450.50*6.00 | |
V460 | V465 | V470 | V475 | |
ID455.50*6.00 | ID460.50*6.00 | ID465.50*6.00 | ID470.50*6.00 | |
V480 | V490 | V500 | V510 | |
ID475.00*10.00 | ID485.00*10.00 | ID494.50*10.00 | ID504.50*10.00 | |
V520 | V530 | V540 | V550 | |
ID514.50*10.00 | ID524.50*10.00 | ID534.00*10.00 | ID544.00*10.00 | |
V560 | V570 | V580 | V585 | |
ID554.00*10.00 | ID564.00*10.00 | ID574.00*10.00 | ID579.00*10.00 | |
V590 | V600 | V610 | V620 | |
ID584.00*10.00 | ID593.50*10.00 | ID603.50*10.00 | ID613.50*10.00 | |
V630 | V640 | V650 | V660 | |
ID623.50*10.00 | ID633.50*10.00 | ID643.00*10.00 | ID653.00*10.00 | |
V650 | V660 | V670 | V680 | |
ID643.00*10.00 | ID653.00*10.00 | ID663.00*10.00 | ID673.00*10.00 | |
V690 | V700 | V710 | V720 | |
ID683.00*10.00 | ID692.50*10.00 | ID702.50*10.00 | ID712.50*10.00 | |
V730 | V740 | V750 | V760 | |
ID722.50*10.00 | ID732.50*10.00 | ID742.00*10.00 | ID752.00*10.00 | |
V770 | V780 | V790 | V800 | |
ID762.00*10.00 | ID772.00*10.00 | ID782.00*10.00 | ID791.50*10.00 | |
V810 | V820 | V830 | V840 | |
ID801.50*10.00 | ID811.50*10.00 | ID821.50*10.00 | ID831.50*10.00 | |
V845 | V850 | V860 | V870 | |
ID836.50*10.00 | ID841.50*10.00 | ID851.50*10.00 | ID861.50*10.00 | |
V880 | V890 | V900 | V910 | |
ID871.50*10.00 | ID881.50*10.00 | ID891.00*10.00 | ID901.00*10.00 | |
V920 | V930 | V940 | V950 | |
ID911.00*10.00 | ID921.00*10.00 | ID931.00*10.00 | ID940.50*10.00 | |
V960 | V970 | V980 | V990 | |
ID950.50*10.00 | ID960.50*10.00 | ID970.50*10.00 | ID980.50*10.00 | |
V1000 | V1010 | V1020 | V1030 | |
ID990.50*10.00 | ID1000.00*10.00 | ID1010.00*10.00 | ID1020.00*10.00 | |
V1040 | V1050 | V1055 | V1100 | |
ID1030.00*10.00 | ID1039.00*10.00 | ID1044.00*10.00 | ID1089.00*10.00 | |
V1150 | V1200 | V1250 | V1300 | |
ID1139.00*10.00 | ID1189.00*10.00 | ID1239.00*10.00 | ID1289.00*10.00 | |
V1350 | V1400 | |||
ID1339.00*10.00 | ID1389.00*10.00 |
